(Industrial Series Ball Bearing)
Ask For Price

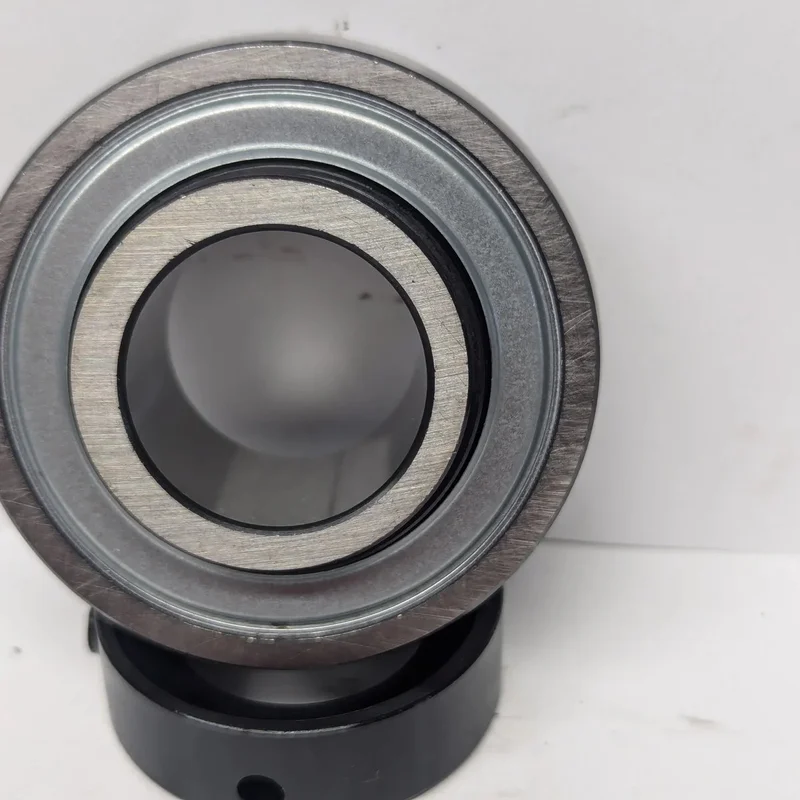

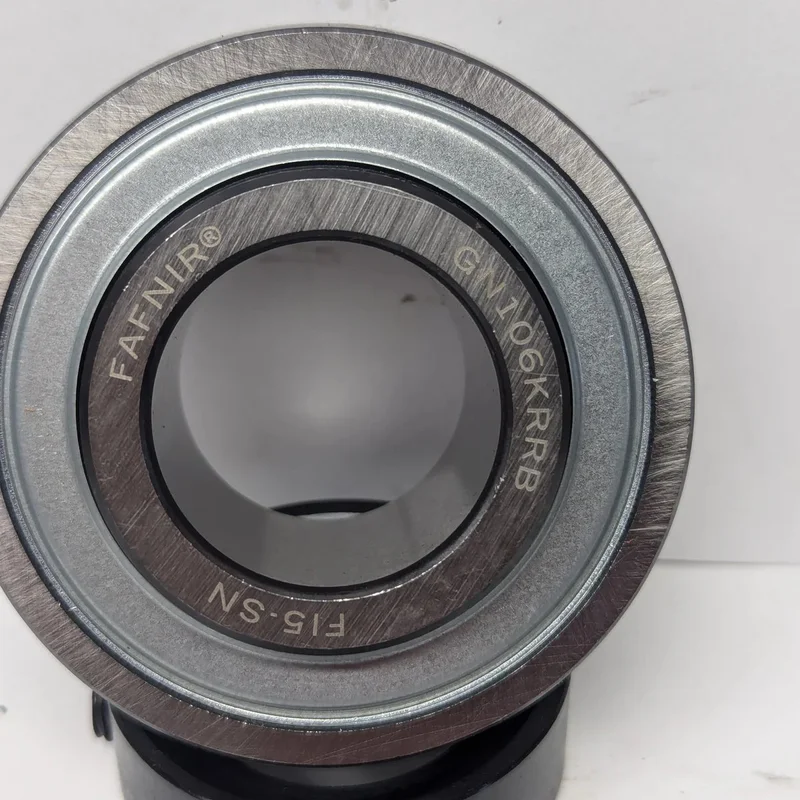

The Timken (Fafnir) GN106KRRB Wide Inner Ring Insert Bearing is a heavy-duty agricultural ball bearing engineered for the toughest field conditions. Part of Fafnir’s heavier 300-series line, it carries higher continuous and shock loads than standard inserts and adds a thicker contact-type seal that fully retains lubricant while shutting out dirt and moisture, ideal for the slow to moderate speeds and abrasive conditions of hay, forage, and harvesting equipment. The wide inner ring supports and aligns the shaft, and the eccentric locking collar mounts quickly on straight shafts. A direct-fit replacement across Case-IH and other major agricultural brands.
| Manufacturing Part Number | GN106KRRB + COL |
| Series | Medium-Duty |
| Shaft Size d | 1 3/8 in |
| Bore Type | Cylindrical bore |
| Bearing Type | Ball Bearing |
| Material | Bearing Steel |
| Lubrication Type | Relubricatable |
| O.D. Type | Spherical OD |
| Sub Series | GN..KRRB |
| Seal Type | Shroud Seal |
| Outside Diameter D | 3.150 in80 mm |
| Inner Ring Width B | 1.5 in38.1 mm |
| Outside Ring Width C | 0.866 in22 mm |
| Radius r | 0.024 in0.6 mm |
| Center of Bearing from End S | 0.72 in18.3 mm |
| Set Screw Size | 3/8-16 |
| Number of Set Screws | 2 |
| Angle between Set Screws | 90 º |
| Dimension d1 | 2.189 in55.6 mm |
| Dimension M | 0.156 in3.96 mm |
| Dimension B1 | 2.031 in51.6 mm |
| Dimension B2 | 0.689 in17.5 mm |
| Static Load Rating | 4120 lbf18300 N |
| Dynamic Load Rating | 8340 lbf37100 N |
The Timken GN106KRRB is a heavy-duty agricultural insert bearing used to support rollers and shafts in hay, forage, and harvesting equipment such as mower-conditioners, balers, and combines. Its heavier 300-series build and thick seals are made for high, shock, and continuous loads in dirty, abrasive field conditions, a durable direct fit replacement on Case-IH and other ag machines.
The eccentric locking collar provides a secure fit on the shaft, preventing slippage and allowing for easy adjustments during installation and maintenance.
Yes, it features double-lip seals that effectively keep out dirt and contaminants, enhancing longevity and reducing maintenance needs.
Timken manufactures this bearing with premium-grade steel and precision-machined components for superior strength and durability under heavy load conditions.
Absolutely. Its robust construction and double-sealed design make it well-suited for outdoor applications, including construction and agricultural machinery.
Its eccentric design simplifies alignment, reduces downtime, and ensures smoother operation, ultimately enhancing overall equipment efficiency.
